สามารถแสดงค่าพลังงานไฟฟ้าจริง(kWh) รีแอคทีพ(varh) ใช้ CT ได้กรณีต้องการวัดค่ามากกว่า 5A และใช้ PT ได้กรณีต้องการวัดค่ามากกว่า 500V เชื่อมต่อข้อมูลไปยังภายนอกผ่าน RS-485 ได้
สถานะสต๊อก:
2
| Network | 1 Phase, 3 Phase 3 wire, 3 Phase 4 wires | |
| Display Mode | LED | |
| Power Supply | AC/DC 80-270V | |
| Power Consumption | <5VA | |
| Real Time Measurement | Three Phase Voltage,Three Phase Current,Power, Frequency, Power Factor,Electric Energy | |
| Signal Input (Voltage) | ||
| Measurement Range | 100VAC,220VAC,380VAC,500VAC | |
| Overload Continued | Continued 1.2 Times; Instantaneous 2 Times | |
| Power Consumption | <1VA | |
| Signal Input( Current) | ||
| Measurement Range | AC 5A | |
| Overload Continued | Continued 1.2 Times; Instantaneous 2 Times | |
| Power Consumption | <1VA | |
| Accuracy Class | Energy 0.5S:f
Frequency +/-0.1Hz Active Power 0.5S Reactive Power 1S |
|
| Communication | RS 485 Communication port,physical layer isolation According international standard MODBUS-RTU agreement | |
| Power Pulse | Dry power opticalcoupler collector output | |
| Environment | Operation: -10 to 55ºC
Storage: -20 to 70 ºC Relative Humidity: <80%RH |
|
| Security | Insulation: Signal,Power Supply, Output Terminal Crust Resistance>5MΩ Withstand Voltage: Signal Input, Power Supply, Between Output Crust resistance>AC2kV |
|
| All Parameter Measuring Functions | |
| Phase-Null Voltage(VL-N) | Apparent Power(VA) |
| Phase-Phase Voltage(VL-L) | Power Factor(PF.) |
| Phase Current(A) | Active Electric Energy(Wh) |
| Active Power(w) | Reactive Electric Energy(varh) |
| Reactive Power(var) | Frequency(Hz) |
| Measuring Function | |||||
| Phase-Null Voltage(VL-N) |
Phase-Phase Voltage(VL-L) |
Phase Current(A) | Phase Active Power(W) | RS-485 Communication |
2 Power Pulse output |
| √ | - | √ | √ | √ | - |
-01.jpg)
| Outline dimension(LXH) | Board assemble(AXB) | Open dimension(SXY) | Total length(N) | Deepth(M) |
| 96x96 | 91x91 | 92x92 | 93 | 78 |

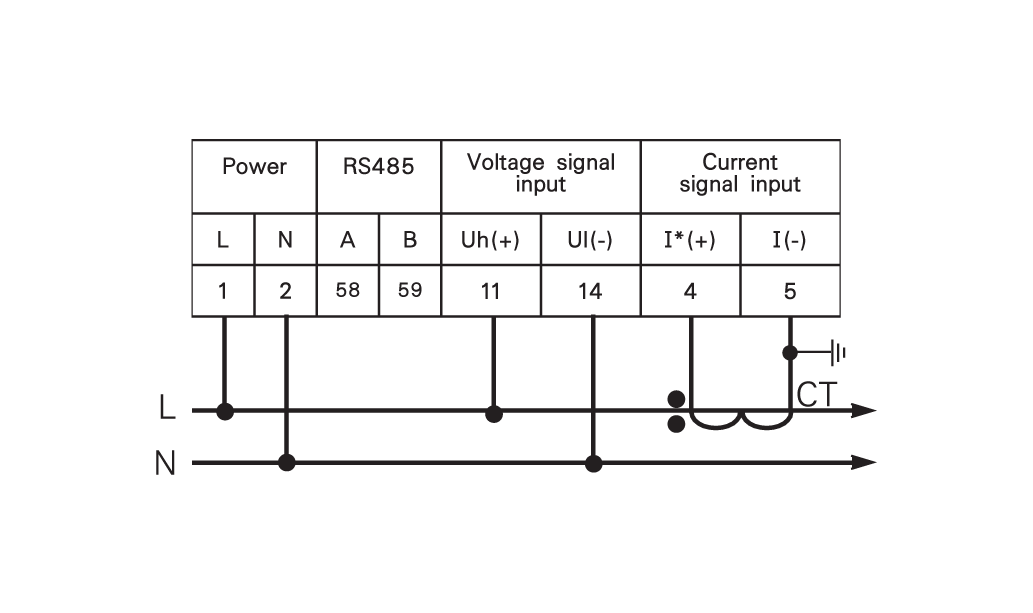

/DIE_HL-S96-5_1.png)
พาเนลมิเตอร์แบบดิจิตอล
พาเนลมิเตอร์แบบดิจิตอล
พาเนลมิเตอร์แบบดิจิตอล
มัลติฟังก์ชั่นดิจิตอลพาเนลมิเตอร์
| Network | 1 Phase, 3 Phase 3 wire, 3 Phase 4 wires | |
| Display Mode | LED | |
| Power Supply | AC/DC 80-270V | |
| Power Consumption | <5VA | |
| Real Time Measurement | Three Phase Voltage,Three Phase Current,Power, Frequency, Power Factor,Electric Energy | |
| Signal Input (Voltage) | ||
| Measurement Range | 100VAC,220VAC,380VAC,500VAC | |
| Overload Continued | Continued 1.2 Times; Instantaneous 2 Times | |
| Power Consumption | <1VA | |
| Signal Input( Current) | ||
| Measurement Range | AC 5A | |
| Overload Continued | Continued 1.2 Times; Instantaneous 2 Times | |
| Power Consumption | <1VA | |
| Accuracy Class | Energy 0.5S:f
Frequency +/-0.1Hz Active Power 0.5S Reactive Power 1S |
|
| Communication | RS 485 Communication port,physical layer isolation According international standard MODBUS-RTU agreement | |
| Power Pulse | Dry power opticalcoupler collector output | |
| Environment | Operation: -10 to 55ºC
Storage: -20 to 70 ºC Relative Humidity: <80%RH |
|
| Security | Insulation: Signal,Power Supply, Output Terminal Crust Resistance>5MΩ Withstand Voltage: Signal Input, Power Supply, Between Output Crust resistance>AC2kV |
|
| All Parameter Measuring Functions | |
| Phase-Null Voltage(VL-N) | Apparent Power(VA) |
| Phase-Phase Voltage(VL-L) | Power Factor(PF.) |
| Phase Current(A) | Active Electric Energy(Wh) |
| Active Power(w) | Reactive Electric Energy(varh) |
| Reactive Power(var) | Frequency(Hz) |
| Measuring Function | |||||
| Phase-Null Voltage(VL-N) |
Phase-Phase Voltage(VL-L) |
Phase Current(A) | Phase Active Power(W) | RS-485 Communication |
2 Power Pulse output |
| √ | - | √ | √ | √ | - |
| Outline dimension(LXH) | Board assemble(AXB) | Open dimension(SXY) | Total length(N) | Deepth(M) |
| 96x96 | 91x91 | 92x92 | 93 | 78 |
