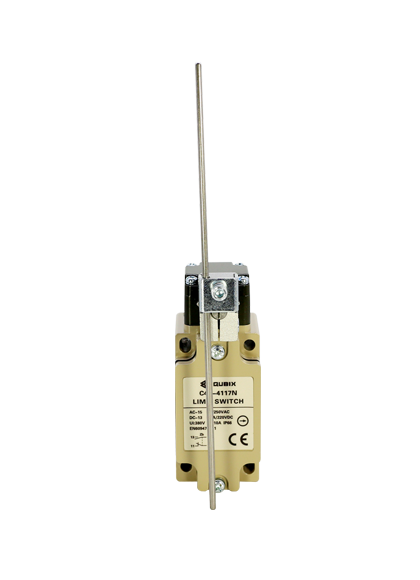

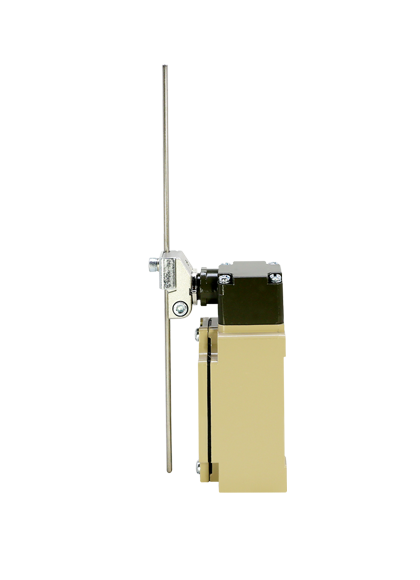

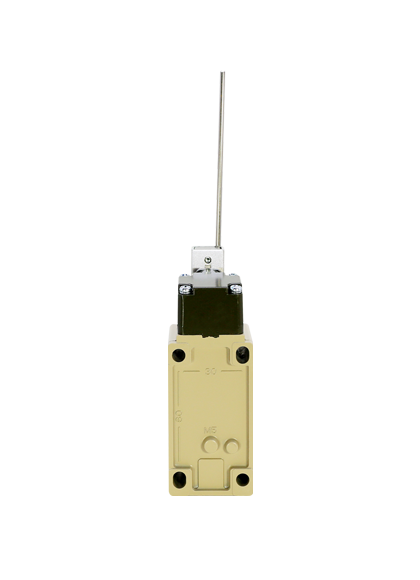

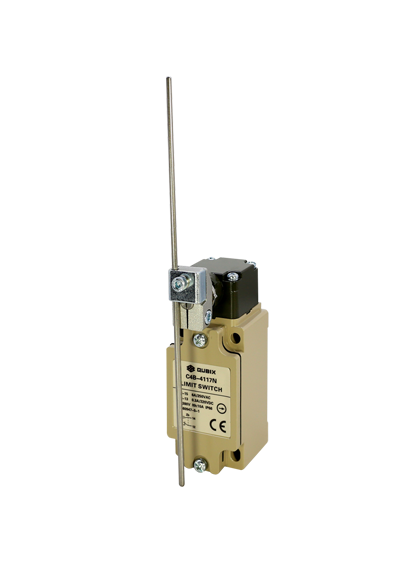

- Forced open action device (NC contacts only), it can disconnet the contact when the contact has fusing and other failures.
- The set safety of lever ensures that gear ratcheting device is used between the action position indicator panel and the lever.
- Strengthened top seal structure improves the sealing performance.
- Built-in contact holder has fast-action type: 1NC / 1NO; Slow-action: 1NC / 1NO and 2NC.
| Protection Level | IP66 |
| Mechanical Life | 10,000,000 times |
| Electrical Life | 500,000 times(250Vac 10A, resistive load) |
| Operation Speed | 1mm~0.5m/s |
| Operation Frequency | Mechanical: 120 times/min |
| Electrical: 30 times/min | |
| Rated Frequency | 50/60Hz |
| Insulation resistance | 100MΩ or more(500Vdc Megameter) between homopolars, terminals and uncharged metal parts |
| Contact resistance | 25MΩ or less (initial value) |
| Withstand Voltage (EN60947-5-1) | Between homopolar terminals: 2.5kV(quick-action type) / 4kV(slow-acion type) |
| Between heteropolar terminals: 2.5kV(slow-action type) | |
| Between charged metal parts: 4kV | |
| Between terminals and uncharged metal parts: 6kV | |
| Rated Insulaton Voltage (Ui) | 600V(EN60947-5-1) |
| Reverse Voltage when on/off | 1500V max.(EN60947-5-1) |
| Pollution degree (environmental conditions) |
Pollution degree 3(EN60947-5-1) |
| Electric shock proof protection grade | Class I (with ground terminal) |
| Vibration | Malfunction: 10~55Hz 0.75mm single amplitude |
| Impact | Duration: 1,000m/s2 |
| Malfunction: 300m/s2 | |
| Ambient Temperature | -20oC~+80oC (No ice or dew) |
| Ambient Humidity | 95%RH |
| Weight | 250g |
| ลิมิตสวิตช์ | |
| ลักษณะหน้าสัมผัสทำงาน | Adjustable Rod Lever |
| Rated Current / Voltage | 10A / 250V |
| Contact Type | DPDT 1NO, 1NC |
| Terminal Type | SCREW TYPE |
| Action characteristics | |
| Action force (Max) | 2.12N |
| Restore force (Min) | 0.29N |
| Pretravel - PT (-) | 21 ํC ±3 ํC |
| Pretravel - PT (2nd) | (45 ํC) |
| Overtravel (Min) | 50 ํC |
| Poor response travel (Max) | 12 ํC |
| Force disconnected pretravel (Min) | 35 ํC |
| Force disconnected pretravel (Min) | 55 ํC |
| Force disconnected force (Min) | 19.61N |
| Total travel (-) | (75 ํC) |
| Free position (Max) | - |
| Action position (-) | - |
| Action characteristics | |||||||||
| Ratedvoltage(V) | Non-inductive load(A) | Inductive load(A) | |||||||
| Resistive load | lamp load | Inductive load | Motor load | ||||||
| NC | NO | NC | NO | NC | NO | NC | NO | ||
| AC | 125 | 10 | 3 | 1.5 | 10 | 5 | 2.5 | ||
| 250 | 10 | 2 | 1 | 10 | 3 | 1.8 | |||
| 400 | 10 | 1.5 | 0.8 | 3 | 1.5 | 0.8 | |||
| DC | 8 | 10 | 6 | 3 | 10 | 6 | |||
| 14 | 10 | 6 | 3 | 10 | 6 | ||||
| 30 | 6 | 4 | 3 | 6 | 4 | ||||
| 125 | 0.8 | 0.2 | 0.2 | 0.8 | 0.2 | ||||
| 250 | 0.4 | 0.1 | 0.1 | 0.4 | 0.1 | ||||
