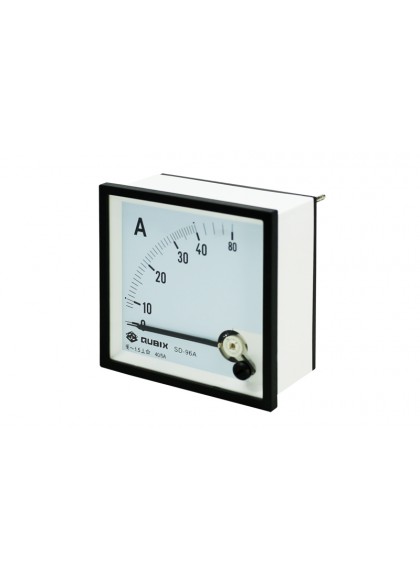

/Panel_Meter_SD-96A 40A-5A_Qubix_45-420x580.jpg)
/Panel_Meter_SD-96A 40A_Qubix_Side-420x580.png)

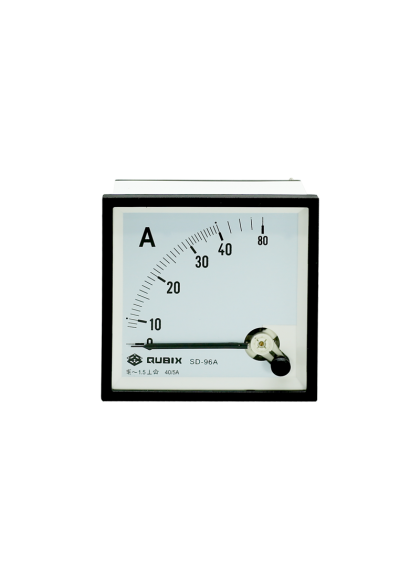

/Panel_Meter_SD-96A 40A_Qubix_front-420x580.png)

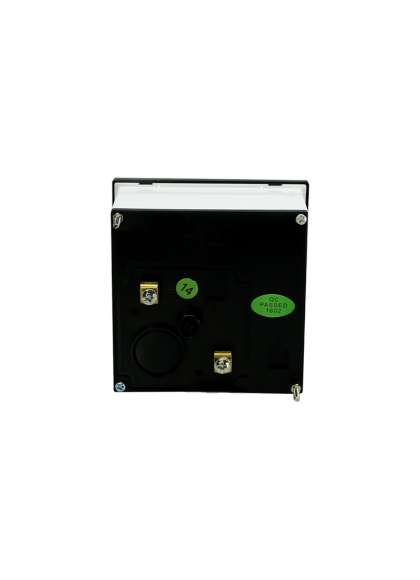

/Panel_Meter_SD-96A 40A_Qubix_Back-420x580.png)
| General Specifications | ||||||
| Reference standard | EN/IEC 60051 | |||||
| Case-dimensions | DIN 43700 | |||||
| Scales and pointer | DIN 43802 | |||||
| Magnetic influence | DIN 43780 | |||||
| Safety | IEC 1010-1 | |||||
| Housing | Self-extinguishing polymer ABS according to UL94V-0 | |||||
| Protection for housing | IP40 as standard | |||||
| IP52 on request | ||||||
| Protection for terminals | IP00 without back cover | |||||
| IP20 with back cover | ||||||
| Accuracy class | 1.5, 2.5 | |||||
| Operating frequency | 45~65Hz | |||||
| Dielectric test voltage | 2KV/ 50Hz/ 1minute | |||||
| Overload AC voltage | x1.2 continuous(x2 for 5 seconds) | |||||
| AC Current | x1.2 continuous(x10 for 5 seconds) | |||||
| Power consumption | ||||||
| Voltage from 1 to 4VA | 1.8VA for 250V, 3.3VA for 500V | |||||
| Current from 0.3 to 1.5VA | 0.7VA for 1A, 1.2VA for 5A | |||||
| Reference temperature | 23 ํC 2 ํC | |||||
| Operating temperature | -25 ํC to 40 ํC | |||||
| Storage temperature | -40 ํC to 70 ํC | |||||
| Relative humidity | ≤85% | |||||
| พาเนลมิเตอร์แบบอนาล็อก | |
| Connection | Connect with CT (5A) |
| Measuring Range | 40/5A |
